Product features

• ? Electrostatic discharge, electrical fast transient pulse group and surge (impact) immunity in one;

• ? 7-inch full-color touch screen operation interface;

• ? Support multi language, convenient for different users;

• ? Built in environment automatic detection program, automatically detect the test environment and remind users;

• ? Programmable operation, realizing the setting function with one key;

• ? Built in international standard grade parameters, easy and fast operation;

• ? The discharge module can be easily replaced to meet the test requirements of different standards;

• ? Rs232/usb interface, which can be controlled by PC and print test report.

Product parameters

• Electrostatic discharge immunity


  output voltage


  Output voltage polarity


  Energy storage capacitance


  Discharge resistance


  Rise time of discharge current


  Air discharge holding time


  Discharge mode


  Discharge mode


  Trigger mode


  Working mode


  Discharge interval


  Discharge times


  Electrical fast transient burst immunity


  Burst output voltage


  Burst frequency


  Group polarity in pulse


  Burst run time


  Impulse group internal resistance


  Pulse front


  pulse width


  Number of pulses


  Pulse train period


  Phase angle


  Coupling / decoupling network


  Surge (impact) immunity


  Surge waveform


  Open circuit voltage


  short-circuit current


  Surge polarity


  Phase angle


  Output impedance


  Coupling / decoupling network


  Surge coupling mode


  frequency


  I interval time

• -


  0.2~±20kV


  Positive, negative, positive before negative, negative before positive


  150pF


  330Q


  0.6~1ns


  ≥5s


  Contact discharge, air discharge


  Single discharge, continuous discharge


  Automatic, manual and gun body control


  IEC level mode, programming mode, voltage ramp up mode


  0.05~9.99s


  1~9999 times


  -


  0.2 ~ ± 5kV


  1khz~1200khz, continuously adjustable


  Positive or negative, positive before negative, negative before positive


  1~9999s, continuously adjustable


  50 Q


  5ns


  50ns (50Q load) /35 ns~150 ns (1kq load)


  1~255, continuously adjustable


  0.15~99.9s, continuously adjustable


  0~360 ° synchronous or asynchronous


  Built in, single-phase three wire, 16A


  -


  Voltage wave: 1.2/50 us; Current wave: 8 /20 us


  0.2~6kV


  0.1~3kA


  Positive or negative, positive before negative, negative before positive


  0~359 ° synchronous or asynchronous


  2q (common mode 12q)


  Built in, single-phase three wire, 16A


  Differential mode 18uf, common mode 9uf /10q


  1~9999 times


  10~9999s

Product recommendation

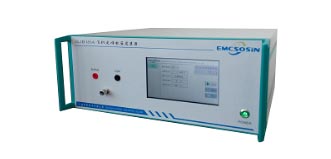

Aircraft peak voltage generator GJB 181a

Model：GJB 181A

The aircraft peak voltage generator GJB 181a is designed according to the requirements of GJB 181 standard. During the flight of the aircraft, the execution of tasks and other functions, the power supply system must ensure the normal working state when performing various scheduled tasks. The main function of this product is to generate peak signals, which can apply 120 voltage peak signals with alternating positive and negative polarity to the tested equipment within one minute.

Learn more

Multifunctional EMC tester EMC t03-w

Model：EMC T03-W

The multi-functional EMC tester is a multi-functional combined immunity test equipment that can carry out three tests of electrostatic discharge immunity, electrical fast transient pulse group immunity and surge (impact) immunity. The three test functions can be combined freely. The products meet the requirements of IEC61000-4-2, iec61000-4-4, iec61000-4-5, gb/t17626.2, gb/t17626.4, gb/t17626.5 and other new standards. EMC t03-w includes three tests: electrostatic discharge immunity, electrical fast transient pulse group immunity and surge (impact) immunity. EMC t02-w includes two tests of electrical fast transient burst immunity and surge (impact) immunity. EMC t02-e includes two tests of electrostatic discharge immunity and surge (impact) immunity. EMC t02-f includes two tests: electrostatic discharge immunity and electrical fast transient burst immunity. The product adopts three-phase five wire fully automatic coupling / decoupling network and full touch screen operation interface, and its performance is comparable to that of imported brands.

Learn more
