Product features

• ? 7-inch touch screen operation;

• ? Support multi language, convenient for different users;

• ? Built in environment automatic detection program, automatically detect the test environment and remind users;

• ? Programmable operation, realizing the setting function with one key;

• ? Built in international standard grade parameters, easy and fast operation;

• ? Rs232/usb interface, which can be controlled by PC and print test report.

Product parameters

• Product model


  wave form


  EUT capacity


  Output pulse voltage us


  Input impedance ri


  Rising edge tr


  Pulse width TD


  Midpulse period T1


  Number of tests


  Output mode


  Equipment power supply


  ambient temperature

• RV P1P2a


  P1 (12V system) /p1 (24V system) /p2a


  20A


  0~-660V/0~+660V


  2 Q ,4Q 10 Q ,30 Q ,50 Q


  0.5~1us(10 Q)/1.5~3us( 50Q2)/0.5~1us(2Q2)


  50us,200us,300us,500us,1ms,2ms


  0.5~99.99s/0.2~99.99s


  1~9999 times


  Coaxial output, built-in coupling decoupling network output


  AC220V ± 10%50/60Hz


  15°C~35 C

Product recommendation

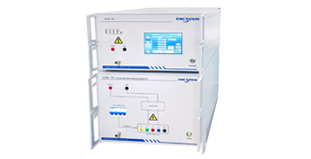

Three phase 6kV lightning surge generator sur T6

Model：SUR T6

The impact of lightning (indirect lightning) in nature and voltage changes caused by large switch switching in power supply lines on power supply lines and communication lines is particularly large, and the impact on products may be destructive. The lightning surge generator is used to evaluate the performance of the equipment when it is subjected to high-energy disturbance from the power line port and other signal line ports. The product meets the requirements of new standards such as iec61000-4-5 and gb/t17626.5.

Learn more

Impulse current generator sur 6ka

Model：SUR 6KA

The lightning surge generator sur 6ka is used to inspect the anti surge protection devices such as zinc oxide arrester valve piece, varistor, SPD, TVs tube, gas discharge tube, etc. for surge impact test. The product produces 8/20us surge pulse waveform, and the technical indicators of the waveform comply with the provisions of national standards and IEC standards.

Learn more

Three phase 5kV pulse group generator EFT T4

Model：EFT T4

In the circuit, such as from the switching transient process (cutting off inductive loads, bouncing relay contacts, etc.), it will usually interfere with other electrical and electronic equipment in the same circuit. This kind of interference is characterized by high amplitude, short rise time, high repetition rate and low energy. Clusters of narrow pulses can charge the junction capacitance of semiconductor devices, which may cause circuit or equipment errors when accumulated to a certain extent. The burst generator determines a common reproducible evaluation basis for evaluating the performance of power supply ports, signal, control and grounding ports of electrical and electronic equipment when disturbed by electrical fast transient bursts. The products meet the requirements of new standards such as iec61000-4-4, en60100-4-4 and gb/t17626.4.

Learn more
