Product features

• ? 7-inch touch screen operation;

• ? Support multi language, convenient for different users;

• ? Built in environment automatic detection program, automatically detect the test environment and remind users;

• ? Programmable operation, realizing the setting function with one key;

• ? Built in international standard grade parameters, easy and fast operation;

• ? Rs232/usb interface, which can be controlled by PC and print test report.

Product parameters

• Product model


  output voltage


  oscillation frequency


  Pulse polarity


  internal resistance


  Pulse front


  Pulse repetition rate


  Burst interval


  Number of pulses


  phase


  Coupling / decoupling network


  Working power supply


  ambient temperature

• RWIT6


  0.25~6KV


  100kHz


  Positive, negative, positive before negative, negative before positive


  12Q、30 Q、200 Q


  Current rise time S1 us; Voltage rise time ± 0.5us ± 20%


  Up to 60 times / minute


  1s ~ 9999s


  1~9999 times


  0~359 ° or asynchronous


  Three phase five wire, 16A


  AC 220V ± 10% 50/60Hz


  15C~35 ℃

Product recommendation

Single Phase 10A Voltage Dips Generator

Model：VDT S10

Voltage dips/sags, short interruptions are caused by failures of the power grid and power facilities or sudden large changes in loads. In some cases, there will be two or more consecutive dips or interruptions. Voltage changes are caused by continuous changes in the loads connected to the grid. If the EUT cannot respond in time to changes in the power supply voltage, it may cause malfunctions. Voltage dips generators are used to evaluate the performance of electrical and electronic equipment when subjected to voltage dips/sags, short interruptions, and voltage changes. Products fully meet the requirements of standards IEC/EN 61000-4-11 and GB/T17626.11.

Learn more

Single phase 15kV lightning surge generator sur S15

Model：SUR S15

Sur S15 lightning surge generator (maximum output voltage up to 20kV) complies with IEC (International Electrotechnical Commission) standards iec61000-4-5, ul1449, European electrical standard (en61000-4-5) and national standard (gb/t17626.5), large screen LCD touch screen control, program-controlled high voltage principle, peak voltage up to 20kV, suitable for outdoor products, military standard products and non-standard products.

Learn more

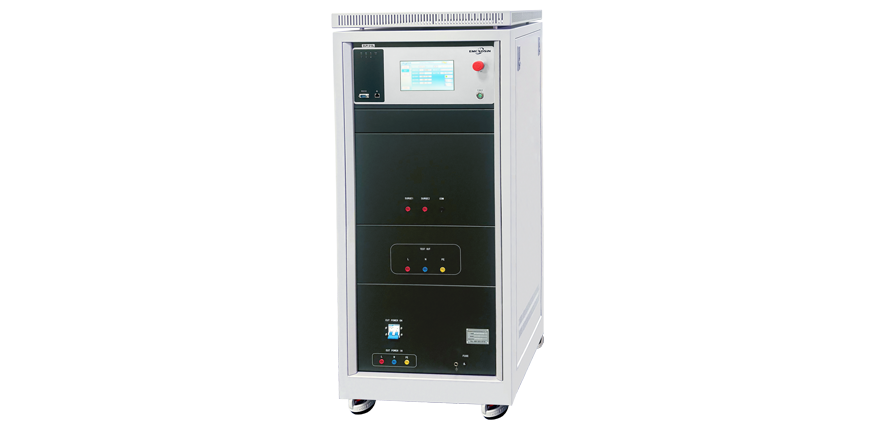

Single phase 10kV multifunctional lightning surge generator sur s10l

Model：SUR S10L

The lightning surge generator sur s10l meets two kinds of surge waveforms: 1.2/50us and 10/700us. It is a surge (shock) immunity test product designed for the power port and communication port of various electronic and electrical products, which is used to evaluate the performance of electronic, electrical, communication and other products when they are subjected to high-energy disturbance from the power port and other signal ports. The product meets the requirements of new standards such as IEC 61000-4-5 and gb/t 17626.5.

Learn more
